## Replacing the capacitors(ReCap)

The Color Classic is a computer which is older than 20 years. Components on the analog board and the logic boards get leaky over the years. That's the main reason why older computers have problems to start up or get different problems.

Many of these problems can be solved by soldering new capacitors(caps) to the boards. It's not difficult to resolder these caps but you will need soldering skills.

The next pictures will guide you to find out which caps you need to change and where they are located on the boards.

The three boards which I displayed here for recapping are all possible to swap into the color classic - for details see the Mystic upgrade page.

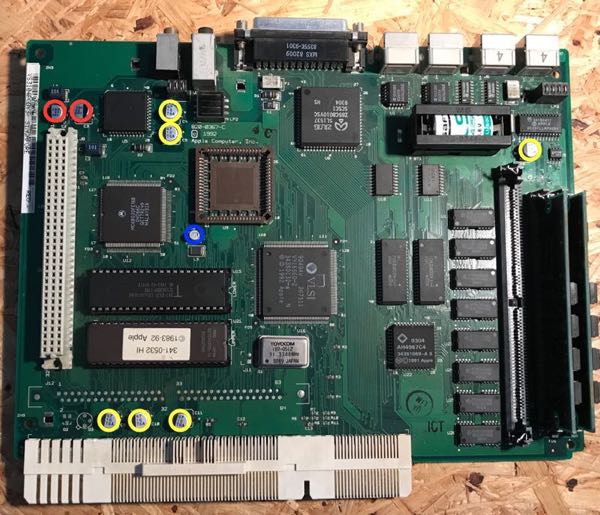

### The Original Color Classic Logic Board

**6 x 47µf - 16V - SMT**

2 x 100µf - 6.3V - SMT

1 x 10µf - 16V -SMT

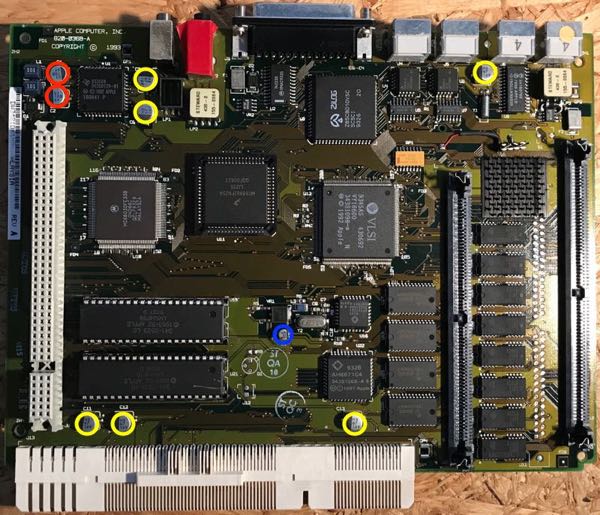

### The Performa/LC 550 Logic Board

6 x 47µf - 16V - SMT

2 x 100µf - 6.3V - SMT

1 x 10µf - 16V -SMT

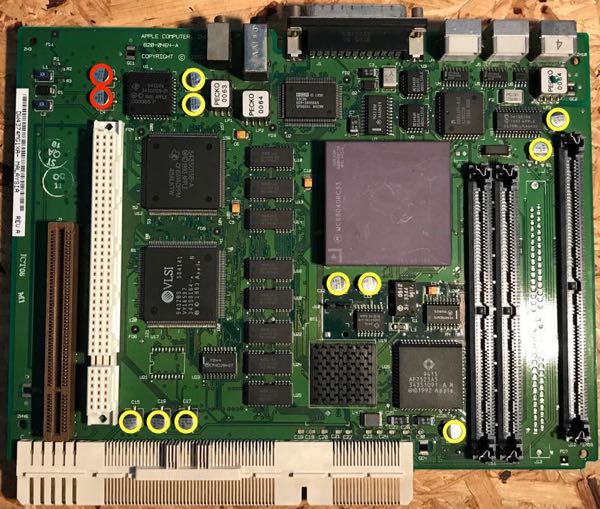

### The Performa/LC 575 Logic Board

**10 x 47µf - 16V - SMT**

2 x 100µf - 6.3V - SMT

## The Color Classic Analog Board

**The analog board of the color classic has rapidly more caps than the logic boards. The List and the picture may be incomplete. If there are caps missing wich you know please contact me.**

Picture in work….

Board Reference | Values | Cap Type |
---|---|---|

CD3 | 10uF 16v | capacitor |

CF1 | 224 250v | poly capacitor |

CF10 | 220uF 35v | electrolytic capacitor |

CF11 | 470uF 35v | electrolytic capacitor |

CF2 | 4.7uF 50v | electrolytic capacitor |

CF4 | 100nF 63v | poly capacitor |

CF5 | .1uF 100v | poly capacitor |

CF6 | .1uF 100v | poly capacitor |

CF7 | 100uF 25v | electrolytic capacitor |

CF8 | 3300uF 16v | electrolytic capacitor |

CF9 | 220uF 25v | electrolytic capacitor |

CL10 | 3.3uF 160v | poly capacitor |

CL11 | 1uF 50v | electrolytic capacitor |

CL13 | 2.2uF 200v | electrolytic capacitor |

CL14 | 47uF 100v | electrolytic capacitor |

CL19 | 10uF 250v | electrolytic capacitor |

CL20 | 103z 2kv | capacitor |

CL21 | 100uF 100v | electrolytic capacitor |

CL23 | 100uF 6.3v | electrolytic capacitor |

CL24 | 1uF 50v | electrolytic capacitor |

CL31 | 1uF 50v | electrolytic capacitor |

CL33 | 2.2uF 100v | electrolytic capacitor |

CL34 | 2.2uF 100v | electrolytic capacitor |

CL35 | .47uF 100v | electrolytic capacitor |

CL36 | 100nF 63v | poly capacitor |

CL4 | 100uF 25v | electrolytic capacitor |

CL8 | .0082uF 600v | poly capacitor |

CL9 | 3.3uF 160v | poly capacitor |

CP10 | 1uF 50v | electrolytic capacitor |

CP12 | 100uF 100v | electrolytic capacitor |

CP13 | 1000uF 35v | electrolytic capacitor |

CP14 | 1000uF 16v | electrolytic capacitor |

CP15 | 100uF 25v | electrolytic capacitor |

CP18 | 471k 2kv | capacitor |

CP2 | 103Z 2kv | capacitor |

CP30 | 330uF 400V | electrolytic capacitor |

CP31 | 6.8nF 600v | poly capacitor |

CP34 | 100uF 25V | electrolytic capacitor |

CP35 | 1uF 50v | electrolytic capacitor |

CP39 | 3300uF 16v | electrolytic capacitor |

CP4 | KC222M | capacitor |

CP40 | 5600uF 10v | electrolytic capacitor |

CP41 | 1000uF 16v | electrolytic capacitor |

CP42 | 5600uF 10v | electrolytic capacitor |

CP43 | 470uF 25v | electrolytic capacitor |

CP44 | 470uF 25v | electrolytic capacitor |

CP46 | 1000uF 10v | electrolytic capacitor |

CP47 | 1uF 50v | electrolytic capacitor |

CP5 | KC222M | capacitor |

CP54 | 1uF 50v | electrolytic capacitor |

CP55 | 1uF 50v | electrolytic capacitor |

CP56 | 330uF 16v | electrolytic capacitor |

CP7 | .22uF 250V | capacitor |

CP8 | .22uF 250V | capacitor |

CP9 | 100uF 25v | electrolytic capacitor |

CS4 | 1uf 50v | electrolytic capacitor |

CV13 | 10uF 100v | electrolytic capacitor |

CV17 | 100uF 25v | electrolytic capacitor |

CV18 | 2.2uF 200v | electrolytic capacitor |

CV19 | 2.2uF 200v | electrolytic capacitor |

CV20 | 2.2uF 200v | electrolytic capacitor |

CV21 | 100uF 25v | electrolytic capacitor |

CV25 | 10nF 100v | poly capacitor |

CV26 | AA5?? | SMD capacitor |

CV27 | AA5?? | SMD capacitor |

CV29 | 103z 2kv | capacitor |

CV30 | 103z 2kv | capacitor |

CV33 | 103z 2kv | capacitor |

CV39 | 1uF 50v | electrolytic capacitor |

CV40 | 1uF 50v | electrolytic capacitor |
